Bottle opener parts have far shown the benefits of Additive Manufacturing. Techniques of topology optimization and lightweighting, linked with ‘complexity free of charge’, distinctly show what is conceivable with metallic Additive Manufacturing. As well they create a bang-up gift that people will utilize and love presenting to others while talking about the content of Additive Manufacturing. Simply what do these bottle opener parts actually show, and is it conceivable to quantify a few of their benefits to hold the advantages proposed by Additive Manufacturing genuinely? Are they quite more than a gaud, or do they actually bring out the ability and utility of metallic AM?
Formal manufacturing procedures are generally sub-optimal in their utilization of material. This is as the frame of a part is mostly driven by the comfort of the manufacturing procedure. A want of design optimization brings out itself once a stress analysis is executed. A few areas of a part will be extremely stressed, although others have really low-stress rates, showing that a bit much material is here. The geometrical freedom proposed by AM enables components to be planned as functional specs as formal parts simply with less stuff. This is frequently cited as a lightweighting part. Lightweighting can be executed utilizing standard CAD ways, specified as bringing down the thickness of characteristics in low-stress areas. All the same, to achieve an advanced stage of weight savings over a whole part, topology optimization is needed.
Weight decrease in Additive Manufacturing:
While optimizing a design specified as a bottle opener, weight reduction is the 1st area of concern. If you were to create a metallic bottle opener utilizing conventional manufacturing ways, you might, for instance, machine it out of a strong billet of stuff specified as steel. In the example of the bottle opener, one might begin with a strong steel block, considering about 40 g (1.41 oz), and get on it into a CNC miller. Utilizing a comparatively modest cutter, the machine would grind away as a lot of stuff as possible, leading to a comparatively easy bottle opener counting approximately 22 g (0.78 oz). The 18 g (0.63 oz) of metal stuff that is processed away and gets scrap, is reusable which needs added cost and energy.

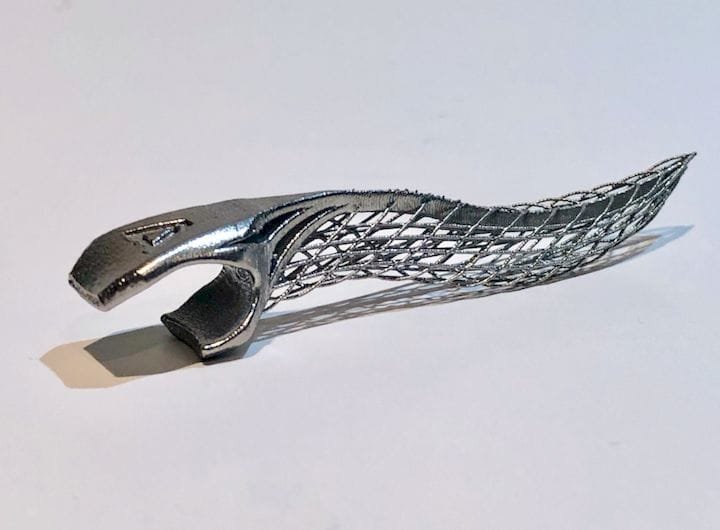

In counterpoint, a bottle opener created by Additive Manufacturing counts just approximately 8 g (0.28 oz). This is less than the weight unit of the machined opener and the fifth part of the weight unit of the cube of steel utilized to create the CNC machined opener. The AM design also brings out just approximately 2 g (0.07 oz) of junk from the support stuff utilized to anchor the opener to the build-up platform during the making procedure.
Mechanical integrity conditions:
Weight diminution is wanted, simply only if it does not compromise the mechanized integrity of a component. Hence, it is significant to consider the mechanical attributes of the topology-optimized design and equate it with the formal design. Most CAD software systems propose easy limited element analysis that provides one to analyze the stresses on a component or the shift that an applied force can get. In a bottle opener, the tooth of the opener is commonly fastened on the bottle cork, although the handle is drawn up. The inflexibility of the grip is crucial because it provides the user to maintain the required leverage to take away the bottle cork. In the very case of the bottle opener made up by CNC machining, a fast analysis evinces that the shift, caused by the deficiency of inflexibility of the grip, from a force of 100 N/mm2 leads to a shift of approximately 2.7-007 mm. In layman’s words, this signifies that if an upwards coerce of approximately 10 kg (22 lbs) is used to the lowest left end of the bottle opener grip, the grip will fold up by a measure of about 0.0000003 mm.
In counterpoint, the topology optimized design under the right same coerce circumstances shows greatly brought down stress and a shift of just 1.7-007 mm. The consequence is about one-half the amount of turning off the strong design. This shows that the optimized design has fewer shifts than the strong design and offers an essential increase in inflexibility, which signifies that it will go best.
Final Words:
Optimizing bottle openers on the coat may come over as a silly exercise. It simply serves as a fantabulous example of the prospective proposed by topology optimization when linked with Additive Manufacturing. It dishes up those determining about topology optimization, lightweighting, and AM and shows what is imaginable. These ways of design can be used for infinite different parts and products at 1000s of organizations close to the world. You are able to get the best 3D printed keyring bottle opener and bottle opener parts from dhgate store. Here you can get the best variety of the bottle opener parts.
